Additional Features:
- 250 ps Timing Resolution
- < 50 ps Channel to Channel Jitter
- 1U Rackmount Ready
- Easy Programming Interface
- 8 Independent Channel Outputs
- Free LabVIEW Driver
- Ethernet, USB, RS232 Standard
- Full Customer Support
- 2 Year Warranty

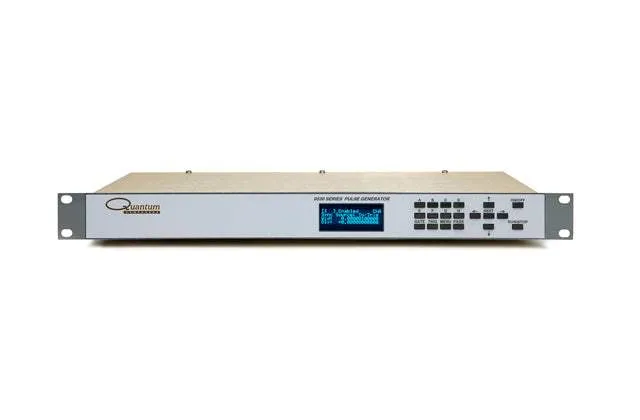

The 9538 Pulse Generator provides precision timing and synchronization to effectively trigger any series of events or necessary equipment with four or eight independent outputs, dual inputs with gate/trigger or optional dual trigger, and external clock reference input.The 9538 can accept a low amplitude clock frequency down to 20 mV, up to 100 MHz. This offers the ability to phase-lock directly to a laser photodiode signal, providing system timing synchronicity with the laser with very low jitter (< 50 ps). Complimentary Labview Drivers (NI certified) available.
