AEM 400 LPH High Flow In-Tank Fuel Pump Kit - Double Barb 3/8" - 50-1230
AEM 400 LPH High Flow In-Tank Fuel Pump Kit - Double Barb 3/8" - 50-1230
Title:
  • DefaultTitle

$ 88.75

$ 68.27

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

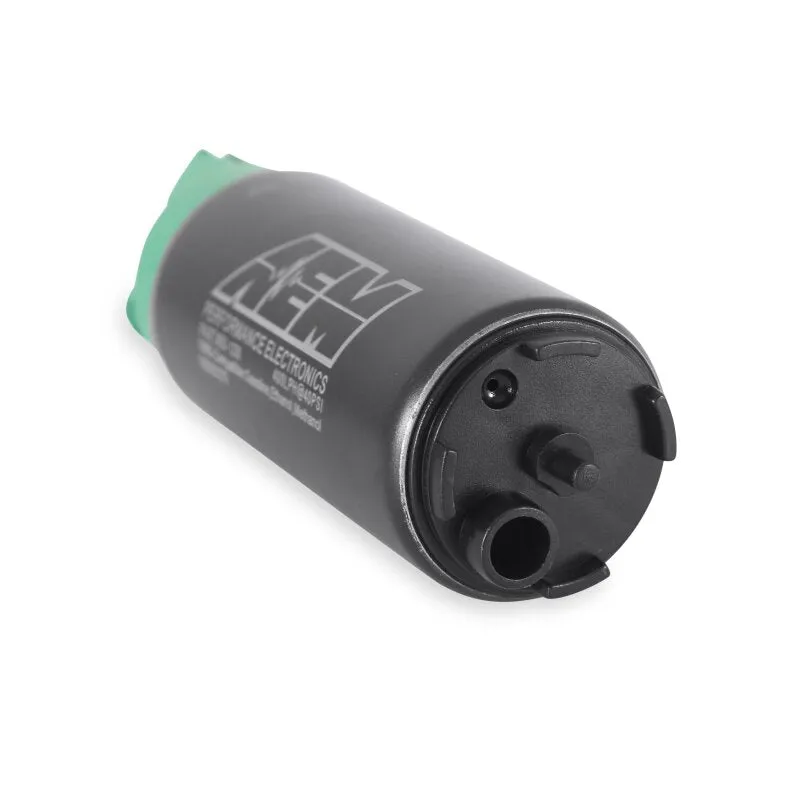

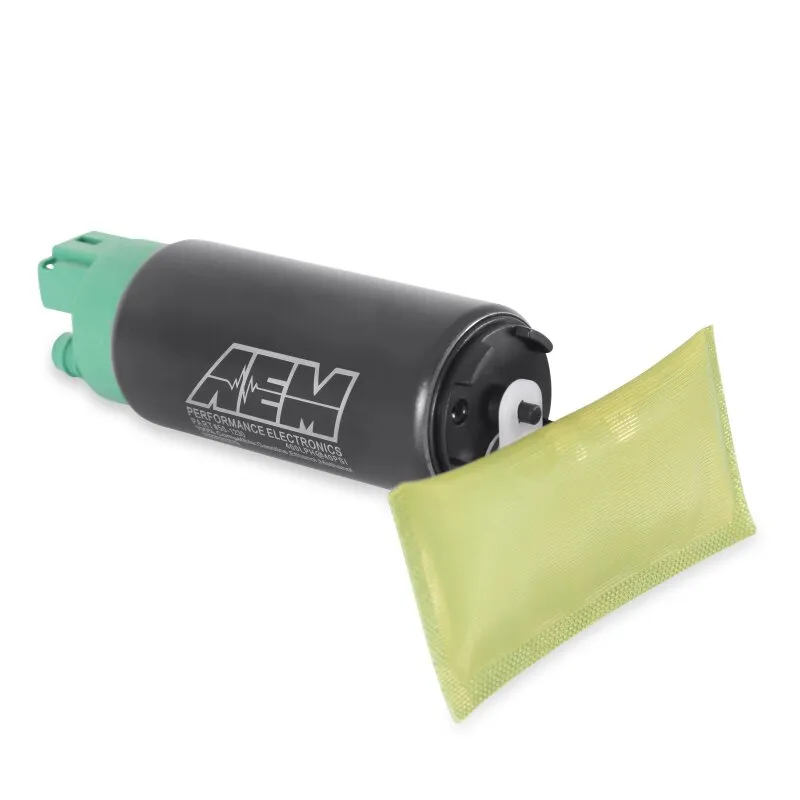

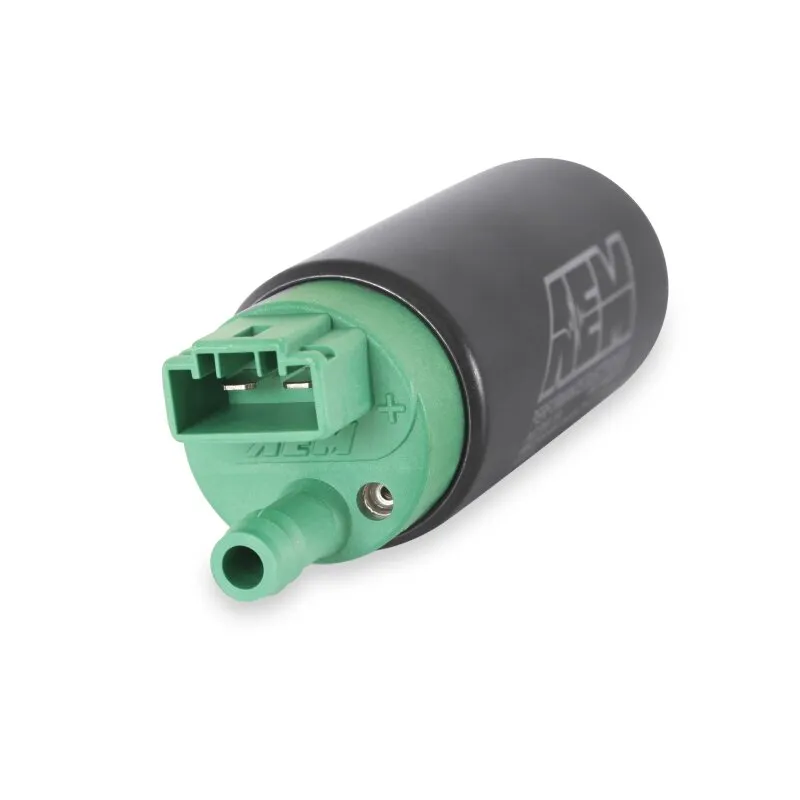

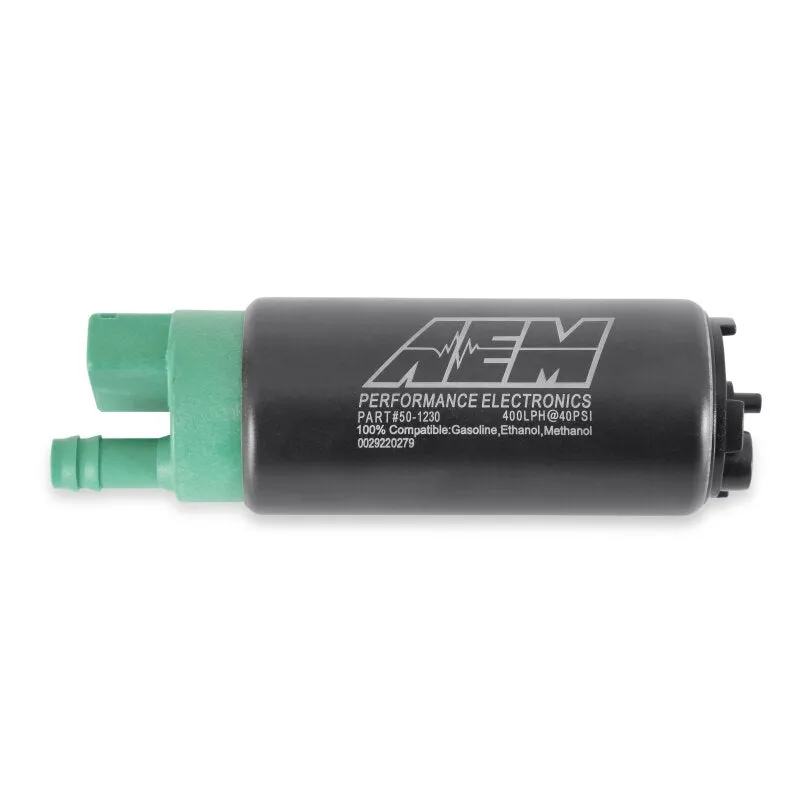

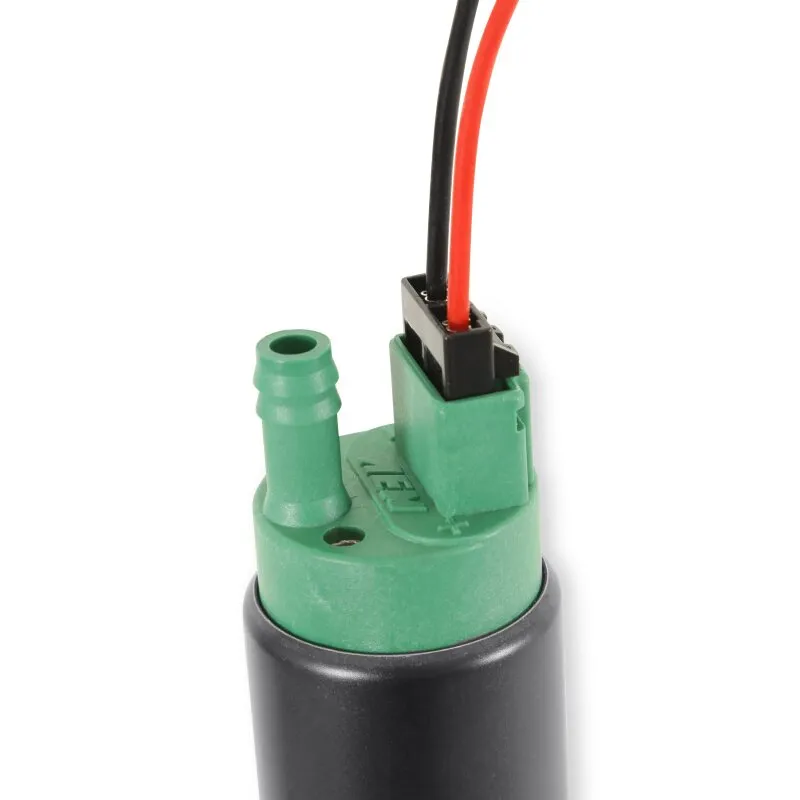

AEM 400 LPH High Flow In-Tank Fuel Pump Kit - Double Barb

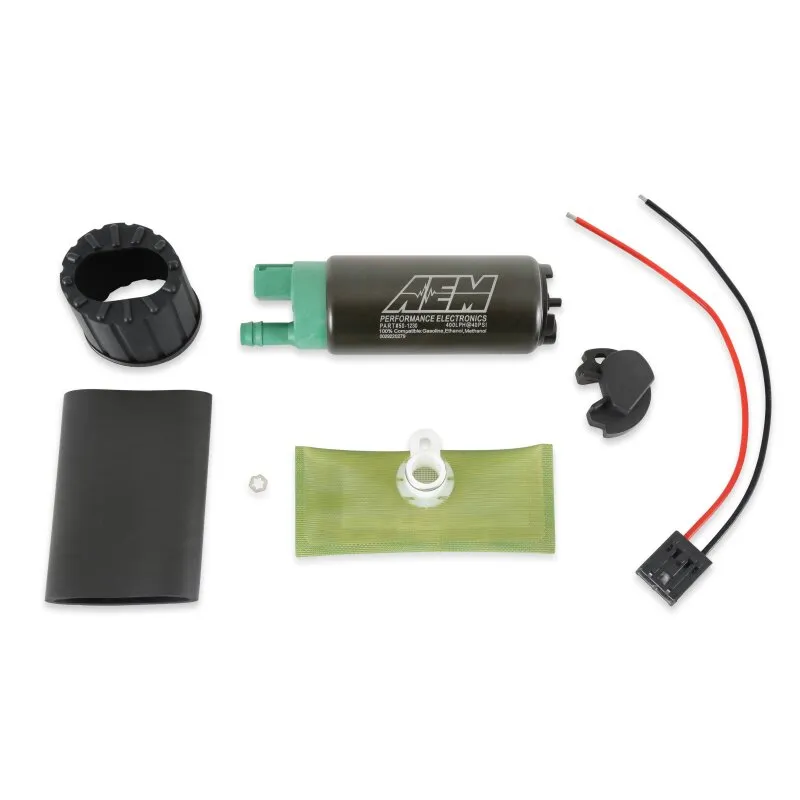

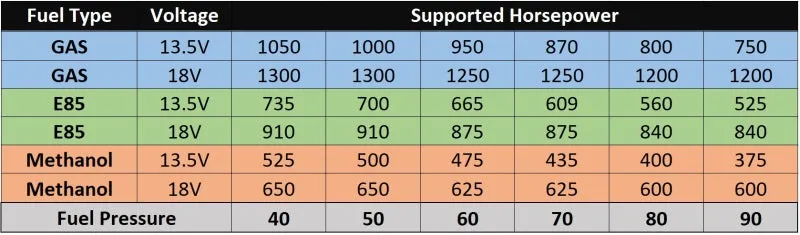

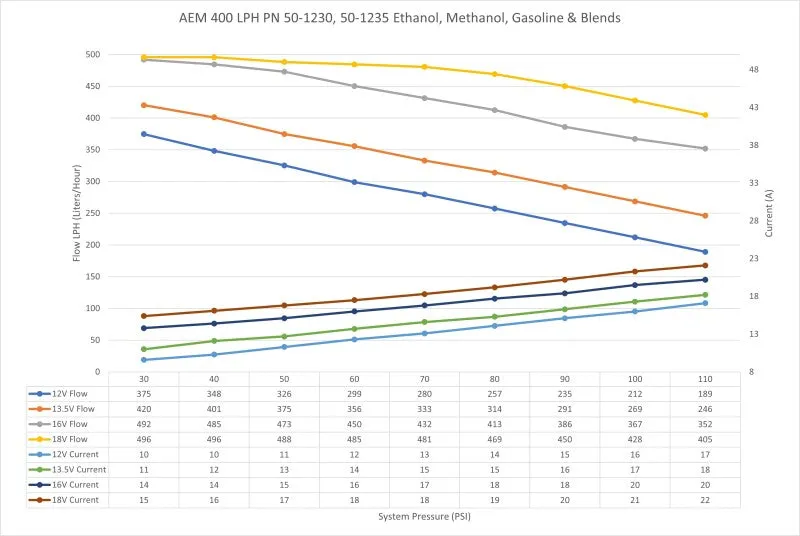

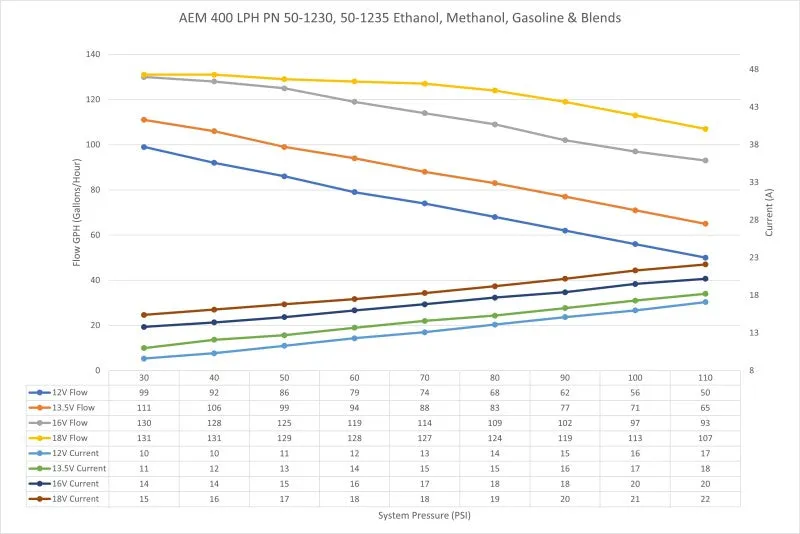

AEM's 400LPH high flow fuel pumps were designed with high performance naturally aspirated and forced induction EFI vehicles in mind! They deliver the same high flow and reliable performance that AEM has become known for at very competitive price. Each pump is individually flow tested and guaranteed to flow 400 LPH (106 GPH) at 40 PSI (13.5V), which on gasoline will support 1000 horsepower!* The pumps also maintain their high flowrate even as system pressure increases flowing 330 LPH at 70 PSI (13.5V) which will support approx. 870 HP* on gasoline! Please see the flow curves and current draw vs. fuel pressure graphs on the specs tab for more information. With their compact 39mm body (same size as Walbro 255), low amperage draw, 11mm inlets and 9mm barbed outlet's these fuel pumps were designed to replace the OEM fuel pump in many applications. The 50-1230 features a double barbed outlet that is ideal for 3/8-inch ID hose where the 50-1235 features a smooth barbed outlet that is compatible with 5/16-inch ID hose. Each pump includes a wiring harness, pre filter, internal fuel hose and clamps, end cap and rubber buffer sleeve. Note: Your vehicle's factory fuel pump wiring may not be adequate to handle the current draw of AEM's High Flow Fuel Pumps. Please refer to the Electrical Requirements section in the instructions document for proper wiring. Note: These pumps do not include integrated check valves.

Features:

  • Highest flow 39mm body fuel pump on the market. Each pump individually flowed and guaranteed to deliver 400 LPH (40 PSI, 13.5V)
  • Maintains very high flow even at boosted fuel pressures; 330 LPH (70 PSI, 13.5V) (30 psi boost)
  • 100% Compatible with most fuels including: pump/race gasoline, ethanol (up to E100), methanol (up to M100)
  • Highly efficient - pumps draw only 12A @ 40 PSI and 15A @ 70 PSI
  • Both models feature a 9mm outlet barb with an 11mm inlet in-line with the outlet
Specs
Application Universal
Brand AEM
Emission Code 5
Free Flow GPH 100
Free Flow LPH 400
Fuel System Carbureted
EFI
Fuel Type E85/Gasoline/Methanol
GPH@40psi 105
LPH@40psi 400
Material Steel
Product Type Fuel Pump
Pump Body Color Black
Warranty Limited 90 Day
UPC 090127819821
Part Number

50-1230
