Brand: Allstar Performance
Manufacturer's Part Number: ALL81230
Part Type: Ignition Coils
Product Line: Allstar Performance High Output Coils
Automotive Fittings Part Number: AAF-ALL81230
UPC: 848238041347
Coil Style: Remote mount
Primary Resistance: 0.400 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 40,000 V
Turns Ratio: 65:1
Secondary Resistance: 4.80K ohms
Inductance: 7.0 mH
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.

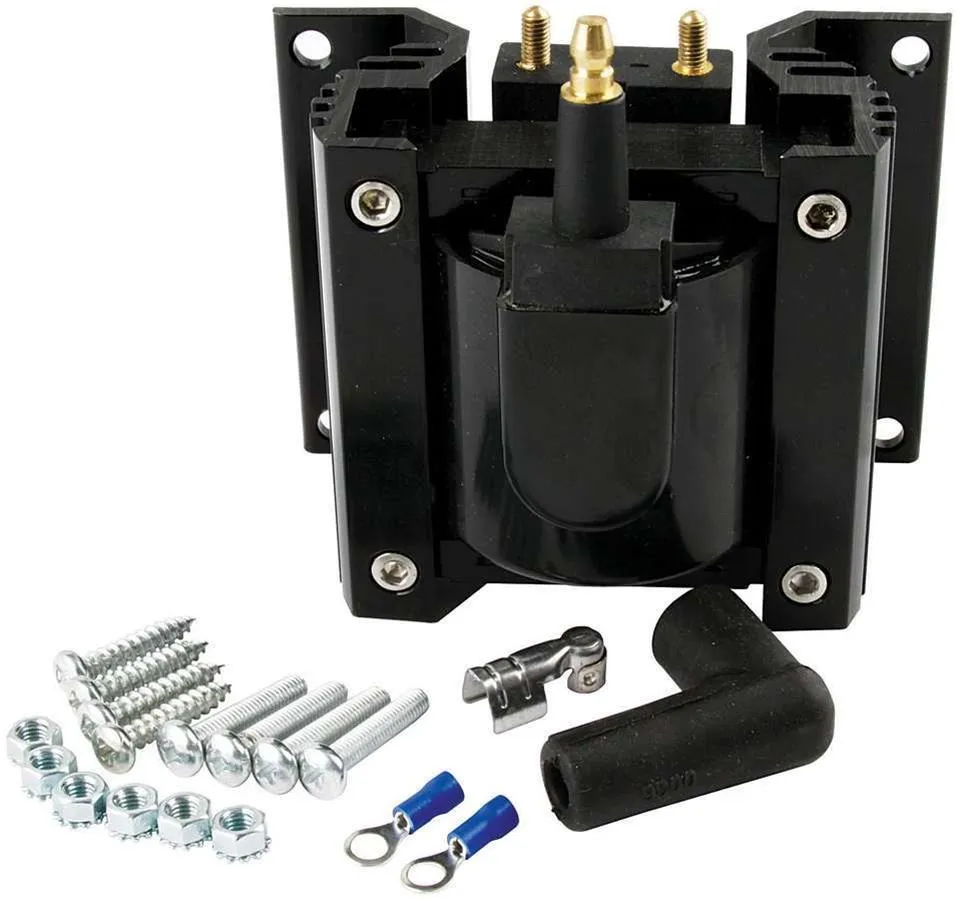

Notes: Coil comes with mounting hardware and new boot and terminal for coil wire. Designed for use with capacitive discharge ignition boxes. Not for use with 7 Series ignitions.
Description:
Amp up the spark in your race car with these Allstar Performance high output coils. These ignition coils are designed to from the ground up to give you more spark and better reliability, even under racing conditions. Their sturdy housing is epoxy-filled to help protect against vibration, while their extruded aluminum bracket makes mounting easy. These Allstar Performance high output coils come ready to go with all of the mounting hardware, anti-vibration mounting pads, ring terminals, and a high-temperature silicone boot, so you can get your ride up and running and back on the track.
