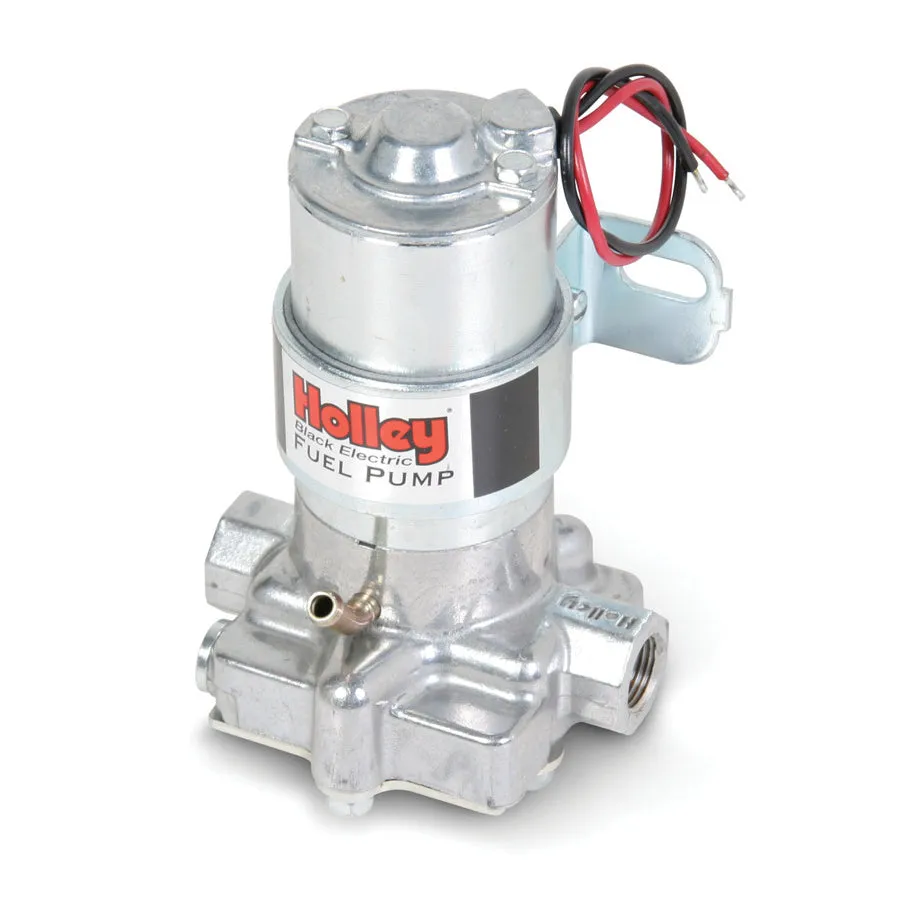

Name: Holley Electric Fuel Pump - 140 GPH "Black" Electric Fuel Pump
SKU: 129884

140 GPH Black® Electric Fuel Pump.

Features:

Low pressure pumps that are perfect for NOS wet system pump

New tumble polished billet look

New lower housing casting for enhanced fuel flow

Improved design for street/strip applications

Distinctive "BLACK" logo

Compatible with alcohol or methanol fuels

Flows 140 GPH (free flow)

Flows 120 GPH at 9 PSI

Pressure is pre-set at 14 PSI

3/8" NPT inlet and outlet ports

Fuel pressure regulator is required. Recommend P/N 12-803

Motor draws only 4 Amps current

7-1/2 Amp fuse recommended

Provides constant fuel flow with no pulsation

Has externally accessible pressure relief valve

Rotor/Vane pump design is more tolerant of contaminated fuels

Weighs only 3 lbs.

Includes mounting bracket

Repair kits are readily available

Can be serviced from either pump end or brush cap end

Use of safety shut-off switch, #HLY12-810, strongly recommended

Not designed or recommended for use with fuel injection systems

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.

Lower housing casting designed for enhanced fuel flow.

Improved design for street/strip applications

Distinctive Î“Ã‡ £Black" logo

Compatible with alcohol or methanol fuels

Not designed for use on aircraft of any type.

Flows 140 GPH (free flow)

Flows 120 GPH at 9 psi

Maximum pressure is 14 psi

3/8" NPT inlet and outlet ports

Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)

Motor draws only 4 amps current

7 1/2 amp fuse recommended

Provides constant fuel flow with no pulsation

Has externally accessible pressure relief valve (max 14 psi)

Rotor/vane pump design is more tolerant of contaminated fuels

Weighs only 3 lbs

Includes mounting bracket

Repair kits are readily available

Can be serviced from the pump end

Use of safety shut-off switch, P/N 12-810, strongly recommended

Not designed or recommended for use with fuel injection systems

Meets U.S. Coast Guard regulations

Includes Fuel/vapor tube

Product Description:

Fuel Pump

Marine Black

Electric

In-Line

120 gph at 9 psi

3/8 in NPT Female Inlet / Outlet

Silver

Gas

Sold Individually
